ASTER::ACTION::JSON::Targeted JSON Pointer: Is Array, Regex-based Replacement

Executes regular expression–based string replacements on all elements of a JSON array.

  • Please complete target path setting in advance.

  • Ensure that the target data type is an array.

  • Each element in the array must be of string type.
    If an element is not a string, the regex replacement is skipped for that element.

{
    "json.30": {
        "regex_query": "^(.+)$",
        "replacement": "./json/sandbox/$1.json",
        "jsonArray": [
            "base64_encode_test_data",
            "dumptest",
            "occ_params",
            "regex_test"
        ]
    }
}

When the JSON path "/json.30/jsonArray" is registered in ASTER as the Targeted JSON Pointer,
the evaluated data type results in Is Array Condition being true.

Regex-based string replacements are then applied to every element in the target JSON array,
and each element is updated with the replaced string.
If an element is not a string, the replacement process is skipped.

This function is inspired by Python’s list comprehension and the concepts of map and filter.
It provides a C++ implementation that applies regular expression replacements only to string elements,
following a list-comprehension-like approach.

Using regular expressions allows for more flexible string transformations than Python’s list comprehensions.
However, as a side effect of using regex, note the following considerations:

  • Requires knowledge of regular expressions (higher learning cost)
  • Debugging complexity caused by regex patterns
  • Performance overhead
  • JSON requires UTF-8 encoding by specification
  • In C++, std::regex — especially in MSVC — is not fully UTF-8–compliant

In MSVC environments, UTF-8 text may be processed at the byte level, which can cause incorrect matches when patterns include Japanese, Chinese, or other multibyte characters.

If your regular expressions mainly involve ASCII-based patterns (\w, ^, $, _, etc.),
the current std::regex implementation is generally practical and reliable.


Parameter.1

Example of a regex search query

"^(.+)$"

^(.+)$ captures the entire content of a single line — from start (^) to end ($).

  • Start anchor: The caret symbol (^) matches the start of a line.
  • Capturing group = (.+): Captures one or more characters (greedy).
    • Greedy quantifier: .+ matches one or more of any character (except line breaks, unless dotall mode is enabled).
  • End anchor: The dollar sign ($) matches the end of a line.

Parameter.2

Example of a regex replacement string

"./json/sandbox/$1.json"

$1: Refers to the captured group — in this case, the entire line.

The resulting replaced string is:

./json/sandbox/occ_params.json

Resulting JSON:

{
    "json.30": {
        "regex_query": "^(.+)$",
        "replacement": "./json/sandbox/$1.json",
        "jsonArray": [
            "./json/sandbox/base64_encode_test_data.json",
            "./json/sandbox/dumptest.json",
            "./json/sandbox/occ_params.json",
            "./json/sandbox/regex_test.json"
        ]
    }
}

application screen

application screen

Example: File existence varification

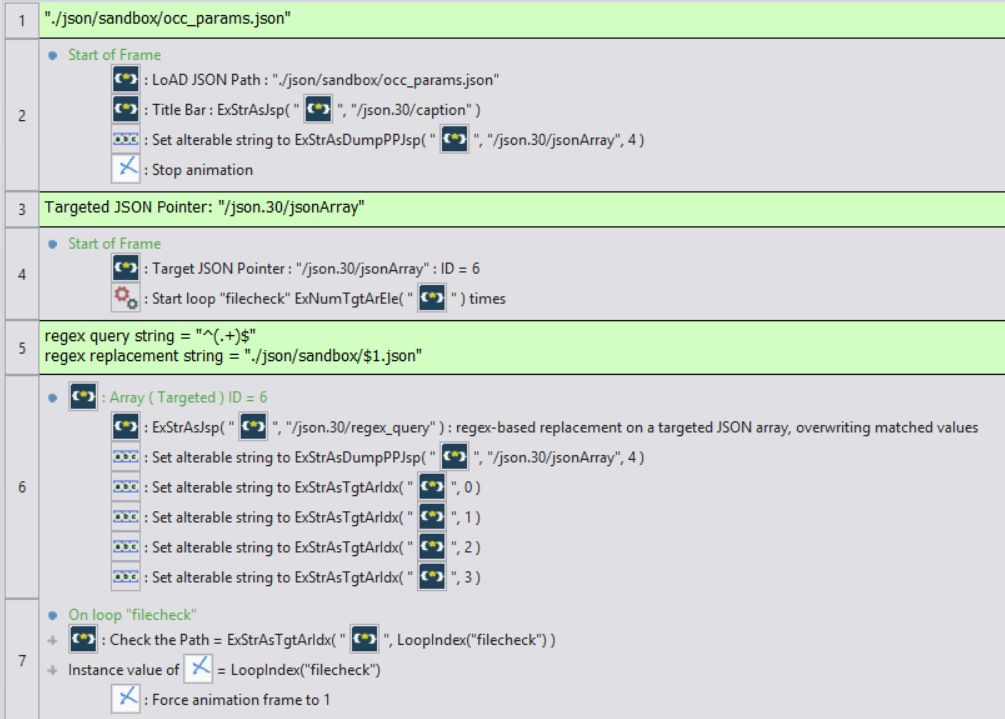

CF25: Event List Editor Screen

CF25: Event List Editor Screen
